Raspberry Pi2 – the Arduino Gourmet version

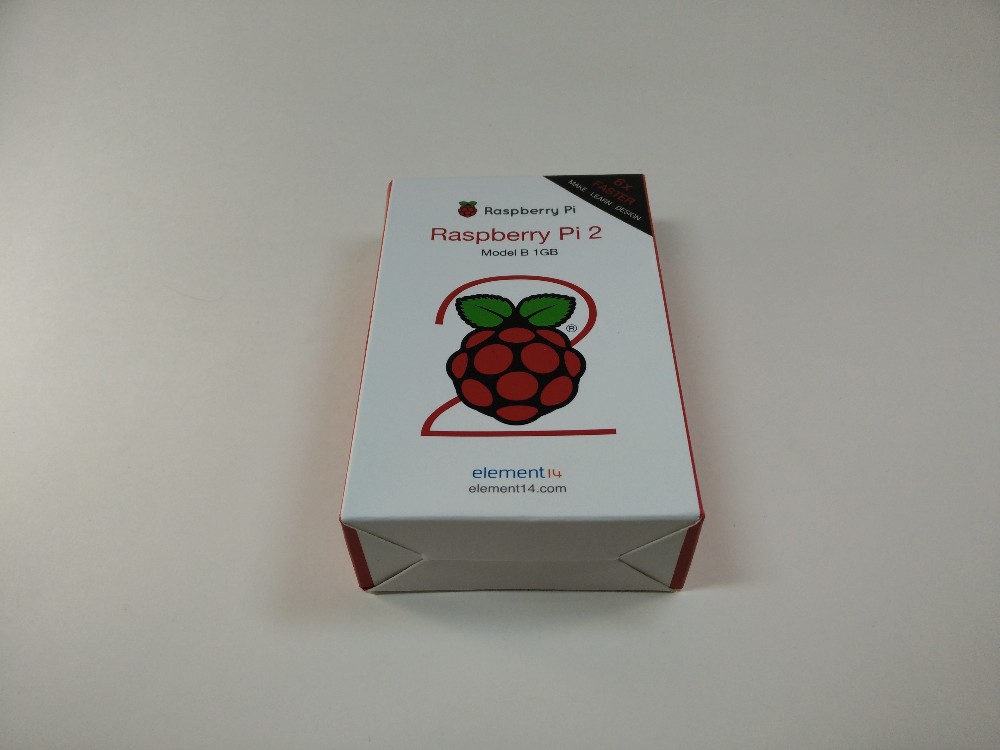

After withstanding a long time, I ended up buying to test one of these Raspberry Pi 2, a mini development computer, something like a Gourmet version of Arduino, IE, with many more options.

55f4aba536ac0_IMG_20150704_021807

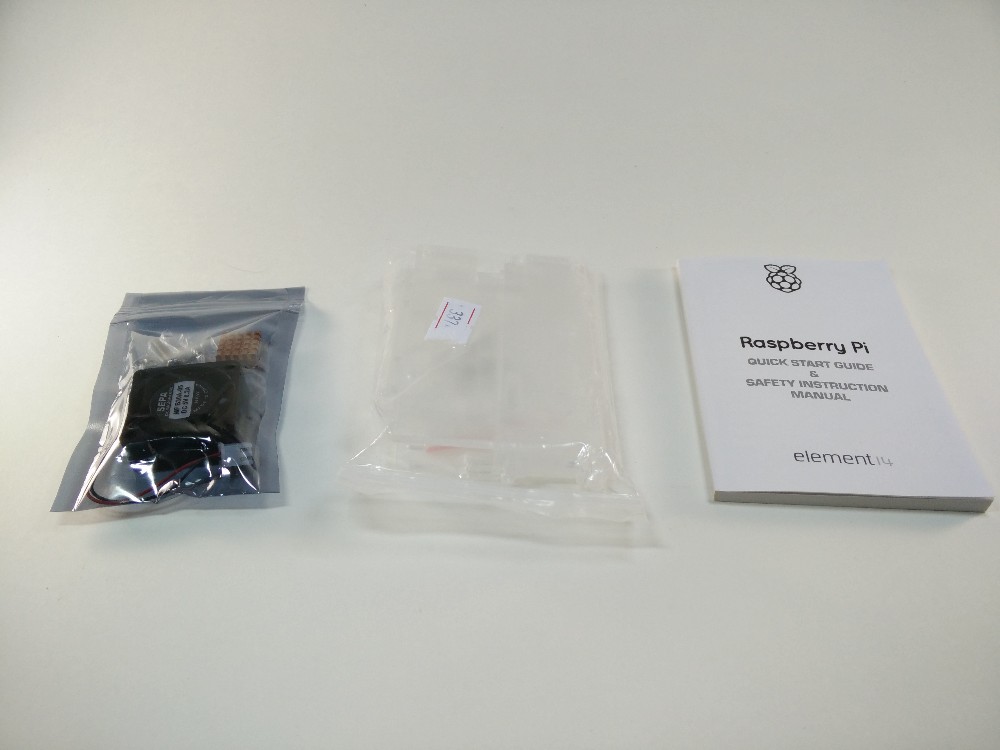

In addition to the label Raspberry, I bought version also comes with manual, cooler and a box of acrylic.

55f4aba94030a_IMG_20150704_021839

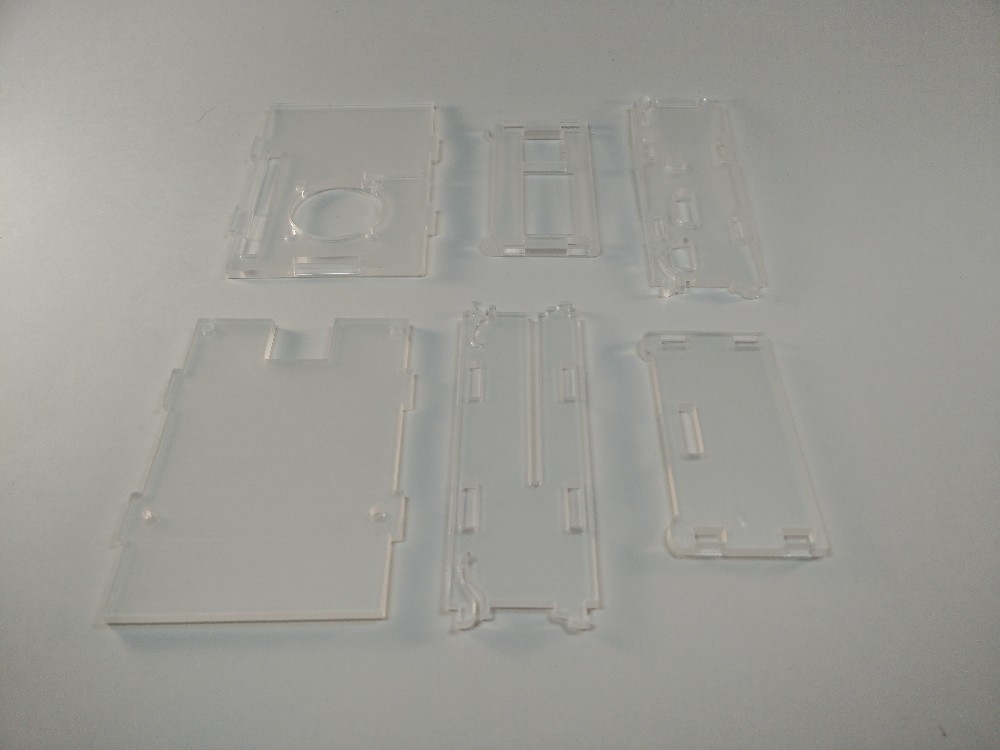

Below the plate of acrylic disassembled.

55f4abaf9b1d2_IMG_20150704_021940

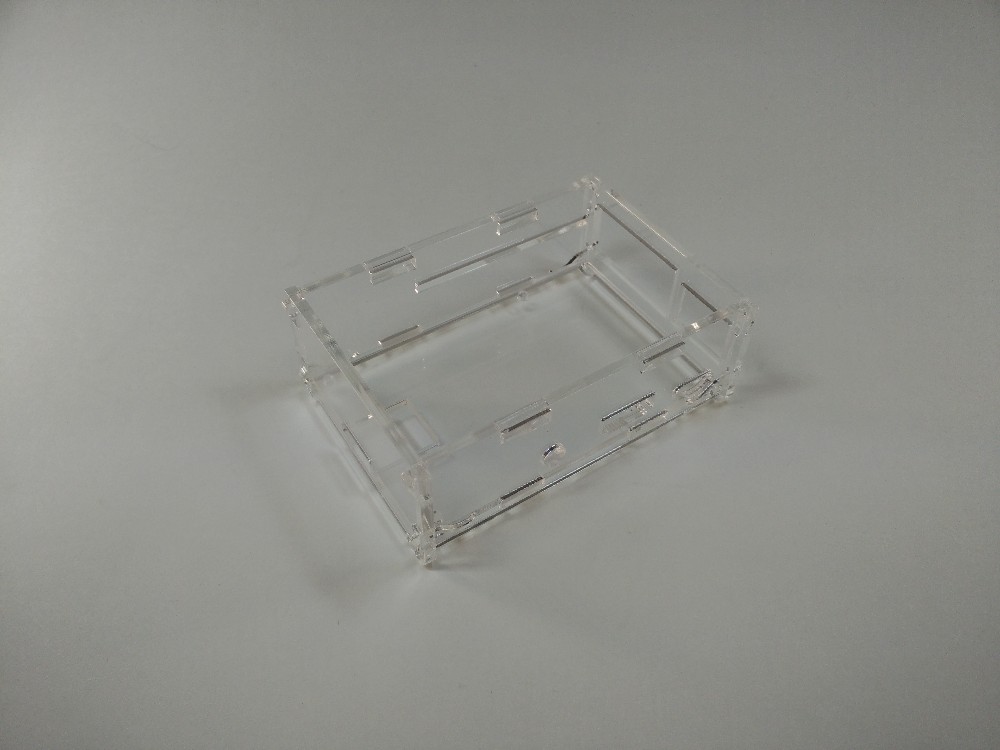

And partially assembled.

55f4abc01a6e3_IMG_20150704_025608

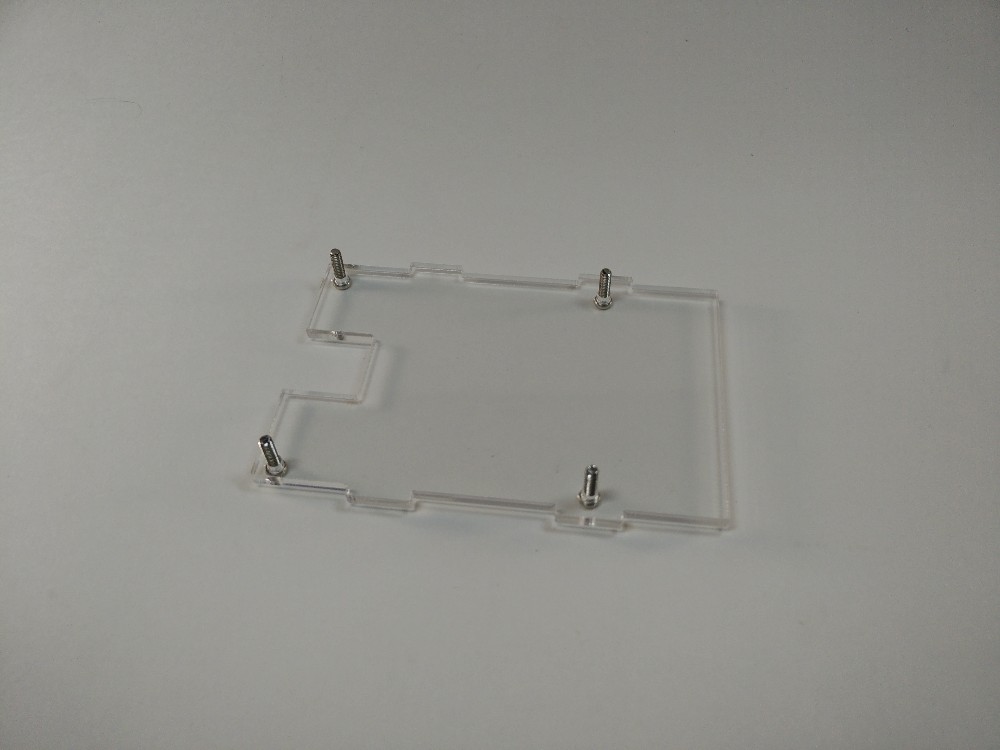

Acrylic box is a Chinese invention. It's not very tough.

55f4abc41ca0f_IMG_20150704_032538

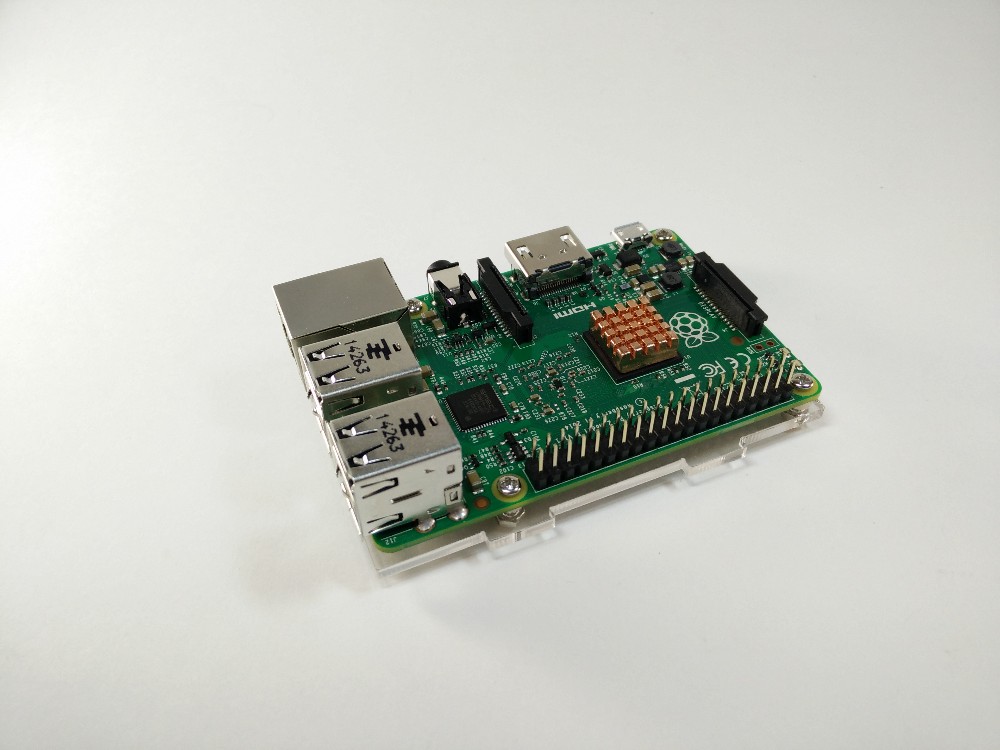

Now yes! Look at how the RaspBerry Pi2. Looks like the Arduino, No?

55f4abc94f6ba_IMG_20150704_033244

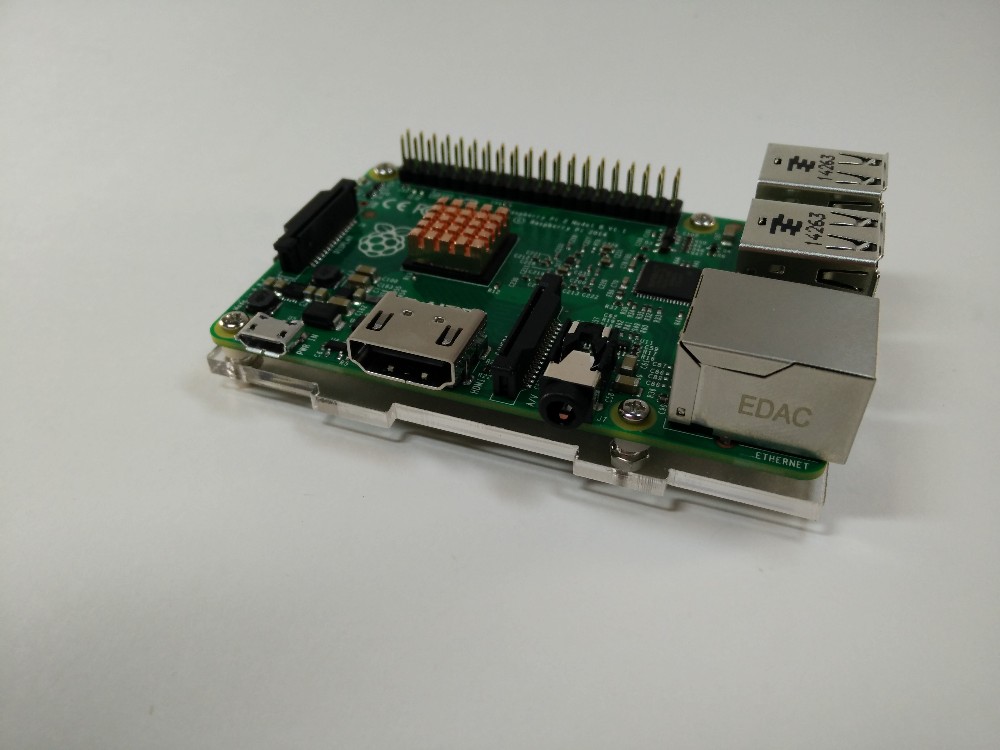

On one side we have a audio output, an HDMI output, a microUSB input for power supply and a wacky connector to a camera.

55f4abcdb6d44_IMG_20150704_033253

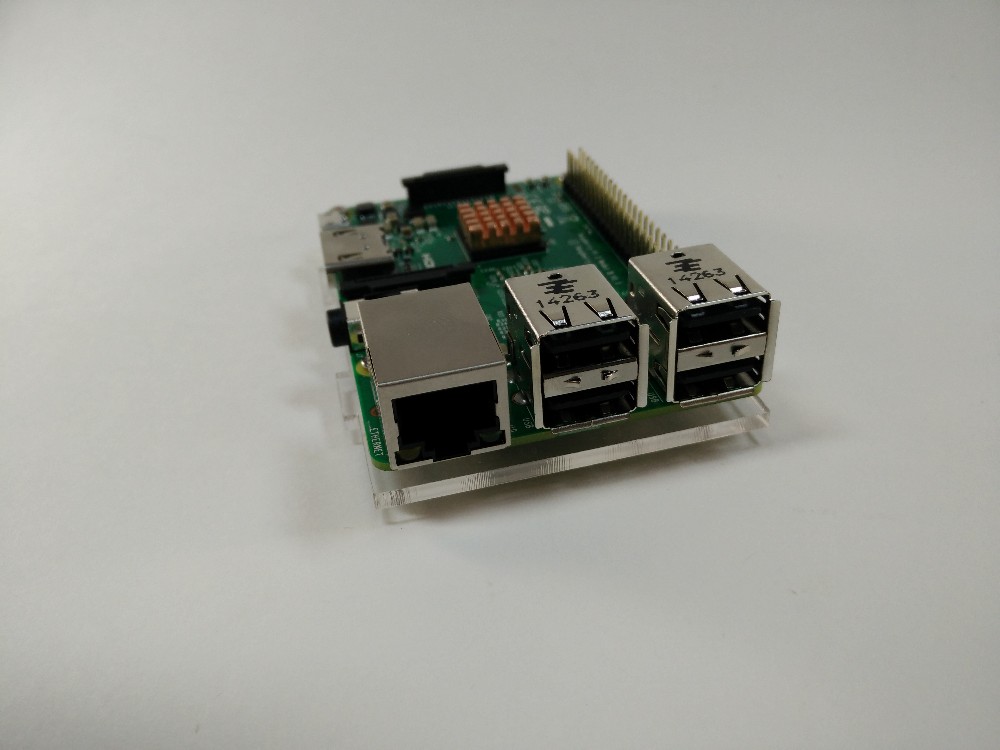

On the back of a lot of USBs! Four! In addition we also have an Ethernet input. No WiFi.

55f4abd222358_IMG_20150704_033258

This connector is for connecting other devices, as the Arduino even.

55f4abd77f24c_IMG_20150704_033302

Go to specifications, the paddle RaspBerry Pi 2 looks like the Arduino only by sight, the processing power of the CPU and memory goes beyond the Italian competitor:

CPU Broadcom BCM2836 900 MHz ARM Cortex-A7 quad-core
RAM/ROM 1GB RAM (no ROM)
GPU Dual-core GPU VideoCore IV
DISPLAY HDMI
Cameras Support for a camera (not included)
The Ubuntu/Windows 10 IOT and other
Other 4 Usb/Ethernet/MicroSD Connector

55f4abdc1e57d_IMG_20150704_033308

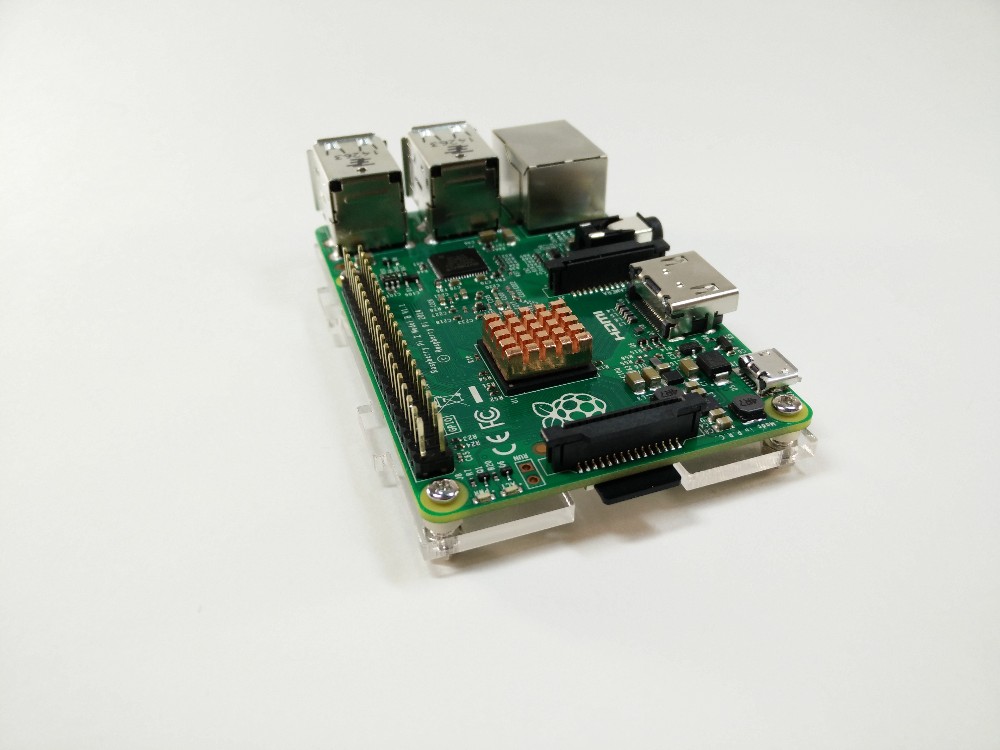

See the bottom of the plate, where on the right-hand side there is a connector for a microSD card.

55f4abe0e3cfc_IMG_20150704_033317

Oh, the cooler will on the perspex. Be careful not to tighten too much or it will break the acrylic.

55f4abeaea09c_IMG_20150704_033853

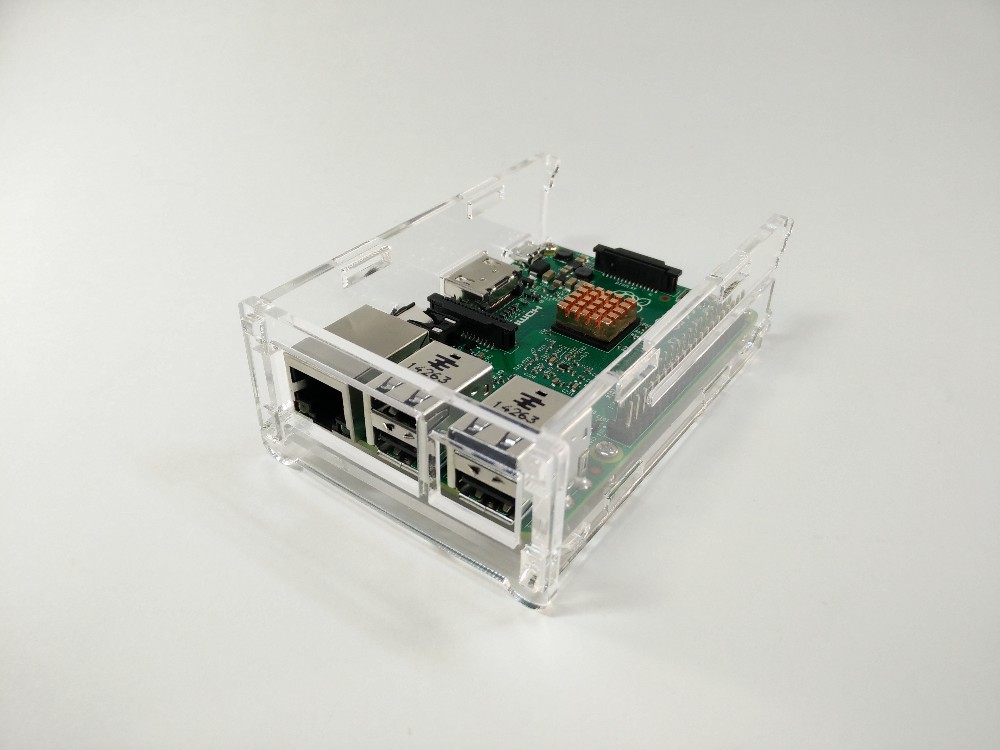

The RaspBerry Pi2 is inside acrylic box, and you can take the lid to connect something inside.

55f4abe6c56c6_IMG_20150704_033538

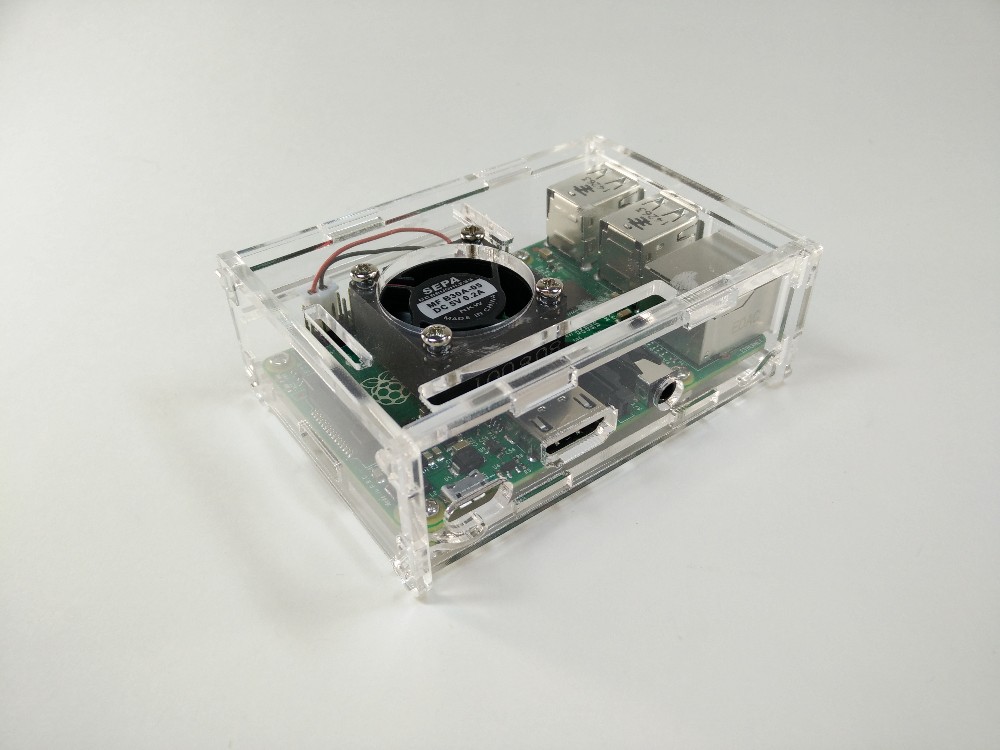

Now yes! All mounted!

55f4abef3a7cb_IMG_20150704_034457

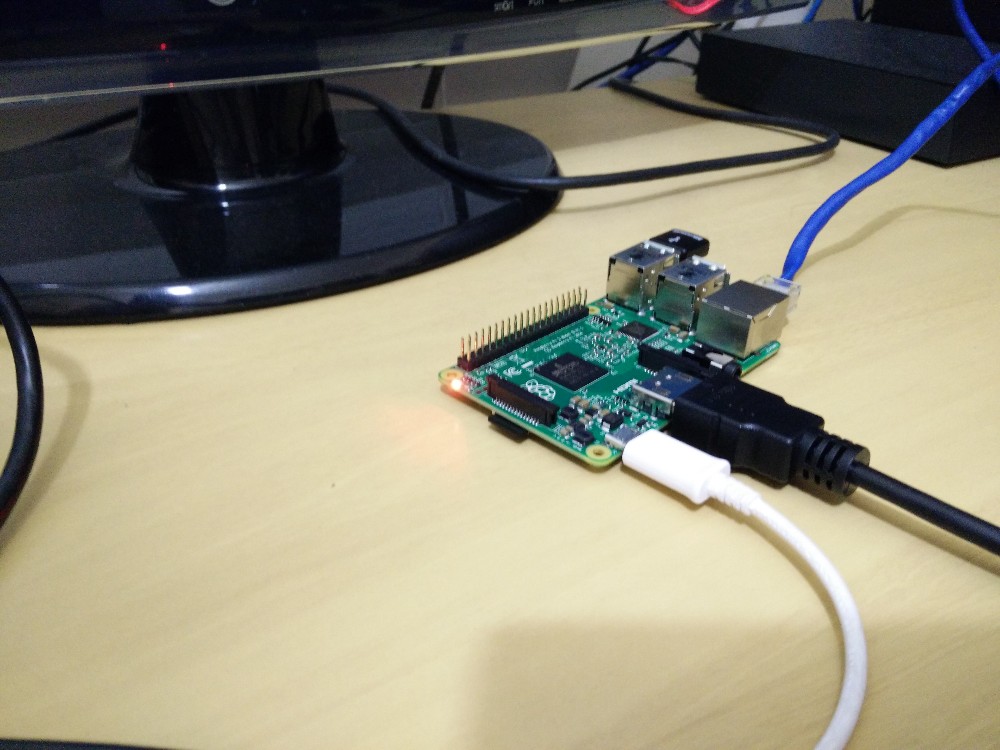

Before you put the little box I called on my monitor, in the network and in a font (microUSB connector white) just to test. Not work anything! What the fuck is this?

55f4abbc1ba64_IMG_20150704_022205

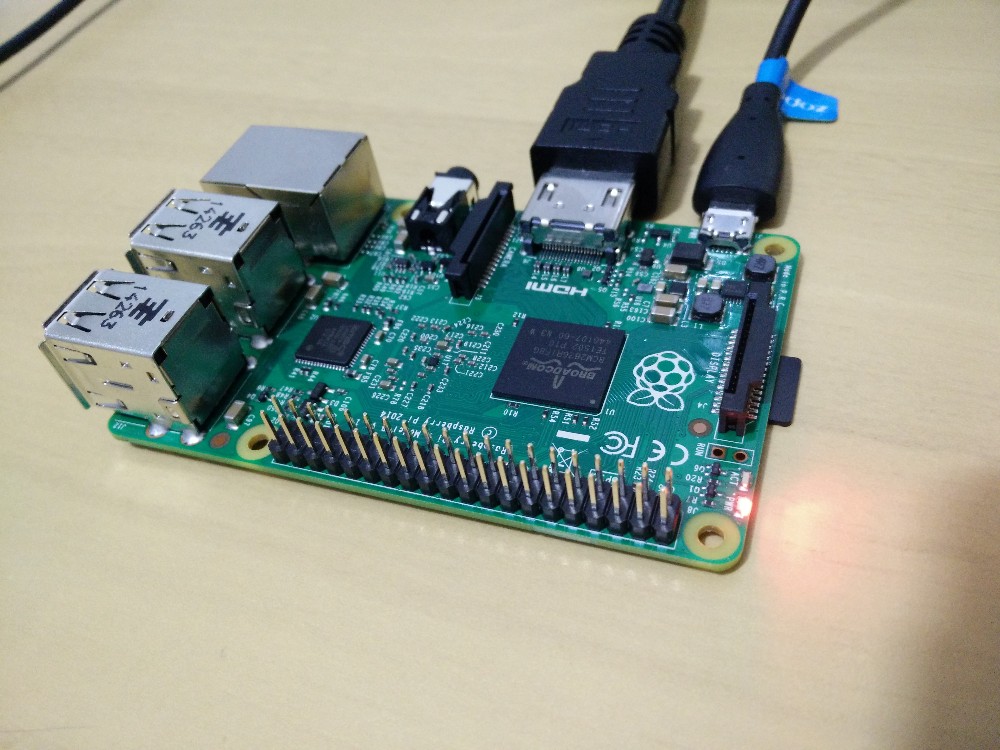

I switched to the cable to see what I had done wrong.

55f4ab6f36dc1_IMG_20150703_012232

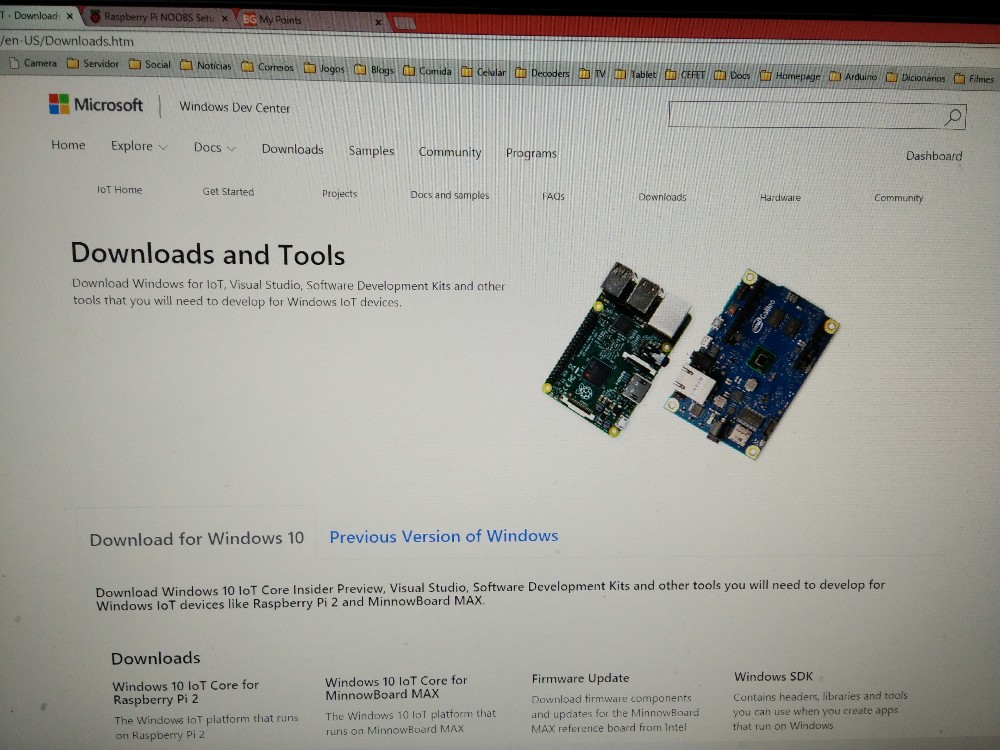

What I did wrong was thinking there was some NAND with pre loaded, like any other computer. There is no! You have to prepare a Windows or Linux system on the SD card first, using your PC. Below we have the Download the Windows version. You can also download the Ubuntu Mate, the Raspbian, the Noobs and other.

55f4ab857fe2c_IMG_20150703_012452

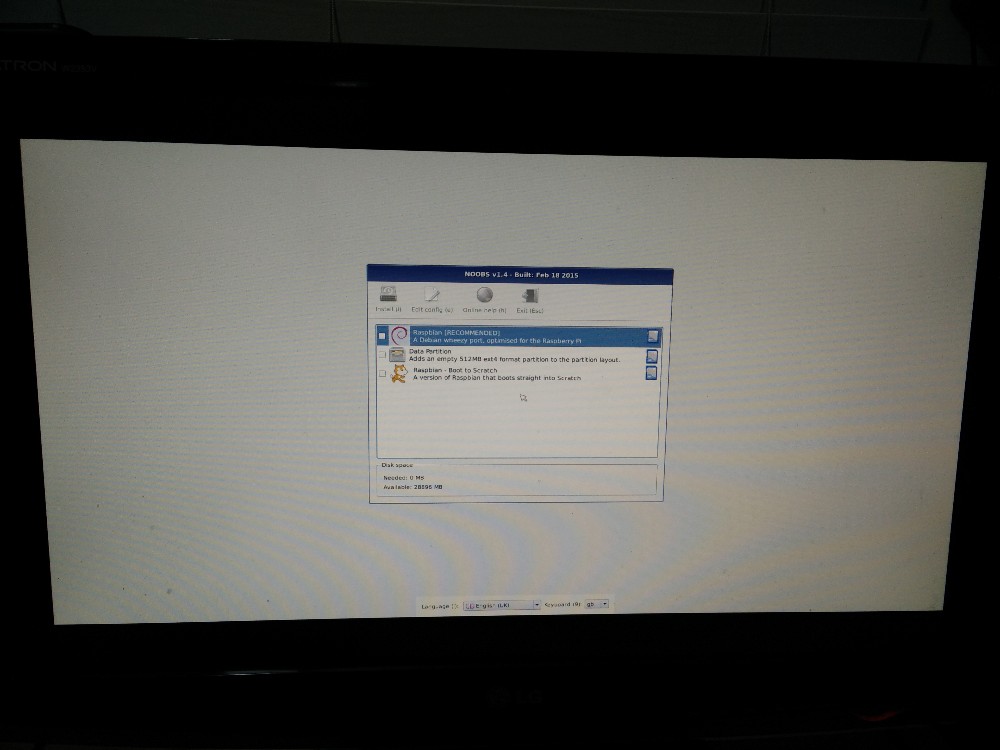

If you choose to download the Noobs, the smallest of the systems, will realize that, actually, This is an installer of other versions of Linux. It can download directly in RaspBerry, different versions of operating system. Below we have the RaspBerry screen even, downloading RaspBian.

55f4ab5cc2129_IMG_20150703_012208

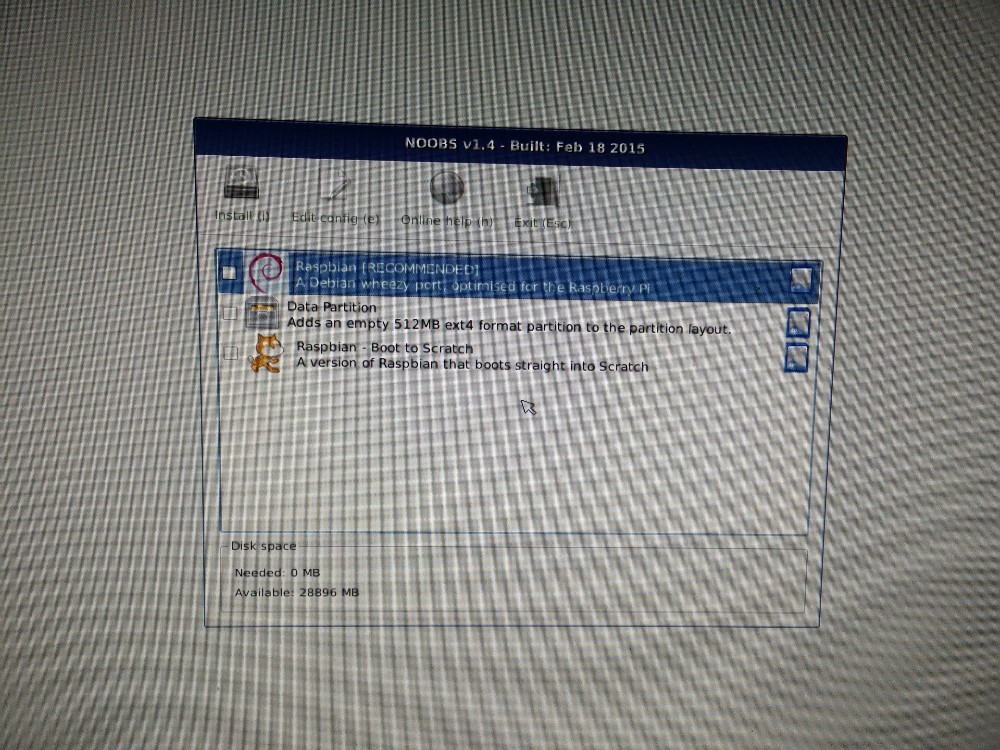

In more detail, the version of RaspBian, Debian of RaspBerry Pi.

55f4ab6676dcd_IMG_20150703_012213

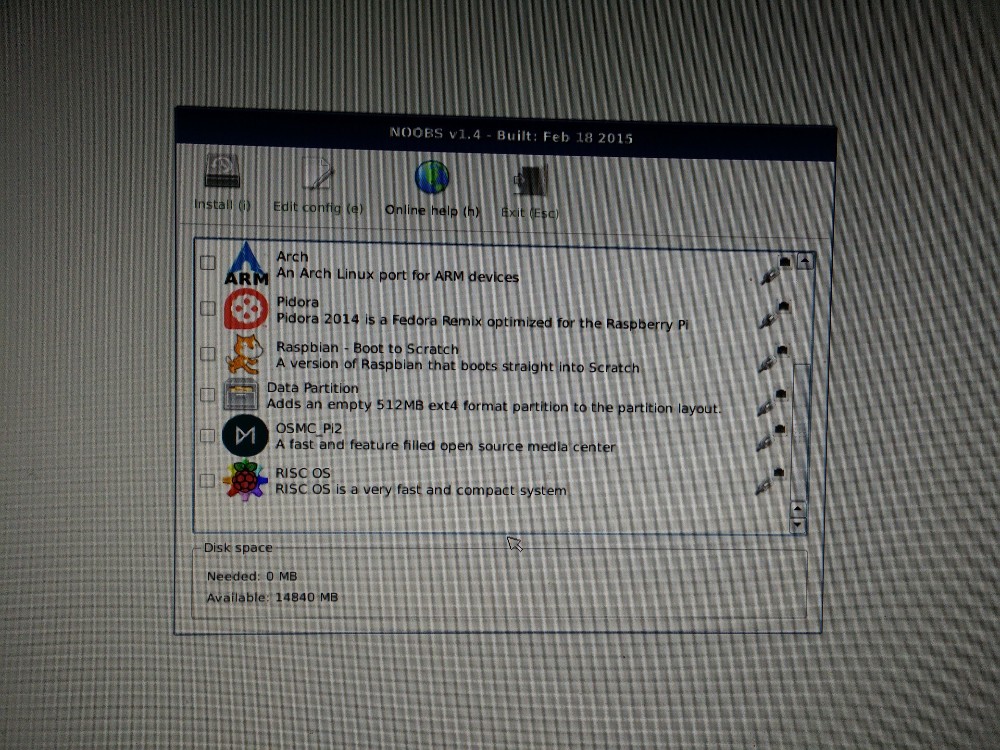

Other versions which can be downloaded.

55f4ac0663cd9_IMG_20150704_144258

More versions of the to the RaspBerry Pi 2:

55f4abffd513c_IMG_20150704_144247

Now sit and wait, because both the boot as the installation of any OS in Raspberry takes too long, Very much, very same!

55f4ac0d1af85_IMG_20150704_145830

And worse, After all I still have to type startx to start the damn graphic mode. That ugly people mania free software find that we like terminal screen.

55f4ac13d09c3_IMG_20150704_150017

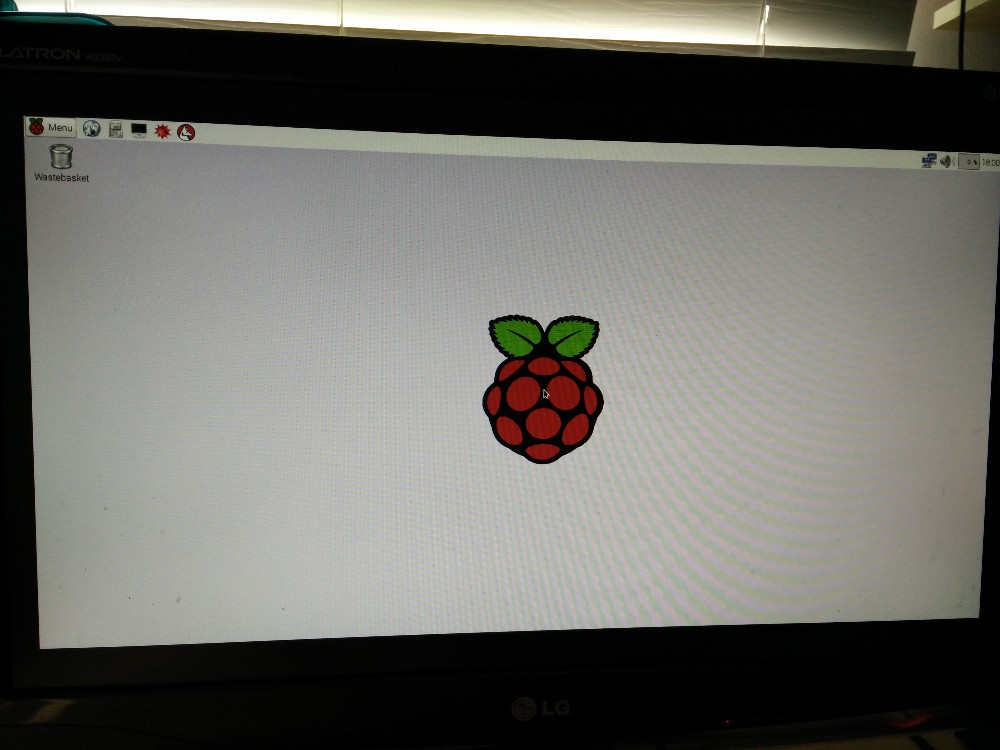

This is a graphical interface of the operating system RaspBian. Ten years ago I'd be delighted with a computer almost Pocket had an HDMI output and allow basically anything that makes desktop. But today I'm extremely annoyed with the fact that RaspBian be a lot reading and little useful. Android and Windows computers got much faster for less than 100 U.S. dollars, as the Pipo X7s.

55f4ac189457e_IMG_20150704_150038

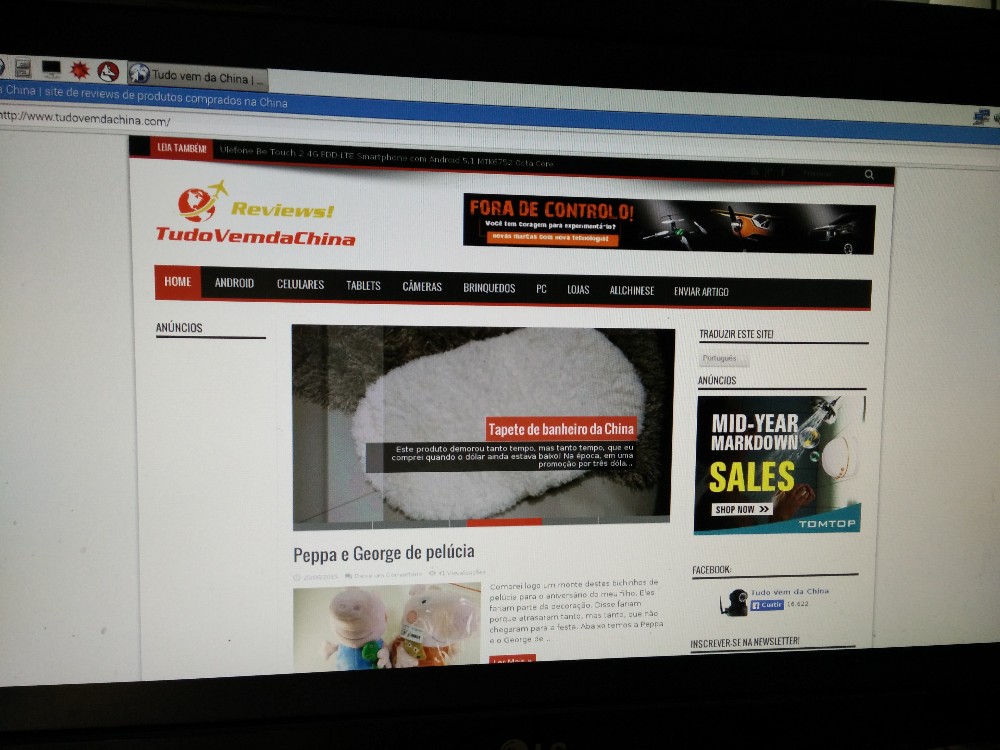

To open the browser and TudoVemdaChina, but it is very slow! The idea is not to replace a desktop computer, Obviously, but to allow an open source operating system command a Development Board. Something like a Gourmet Arduin, as one told in the title.

55f4ac209553c_IMG_20150704_150216

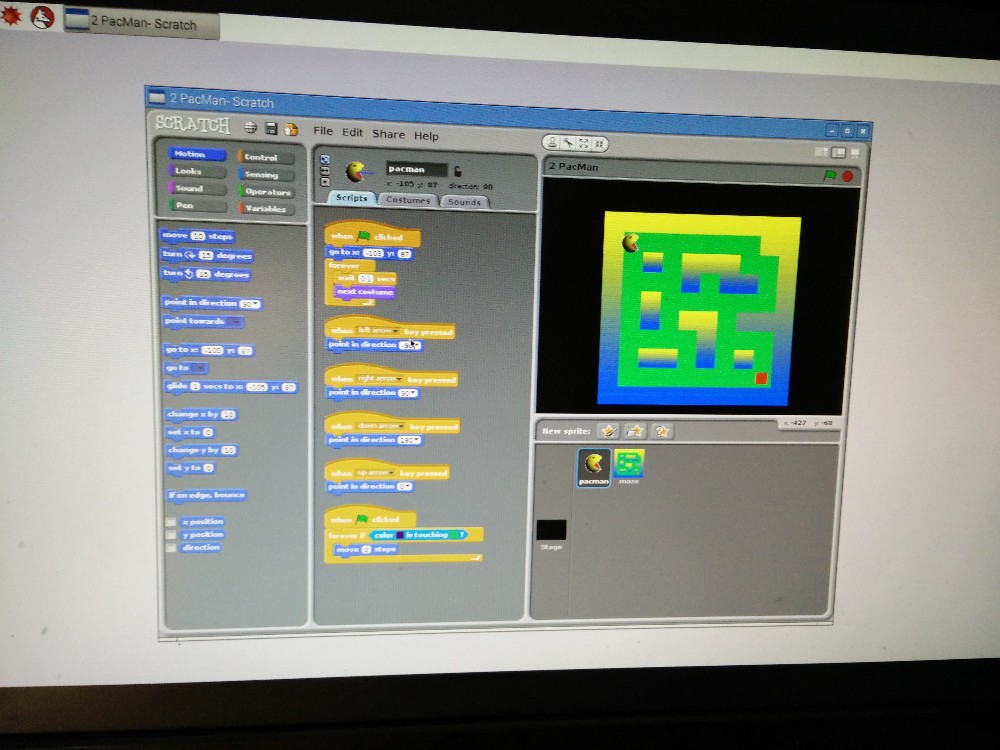

What I liked most I'm going to a game development application called Scracth. Very cool. Have PC version where the mouse is not slow?

55f4ac28b83b5_IMG_20150704_150311

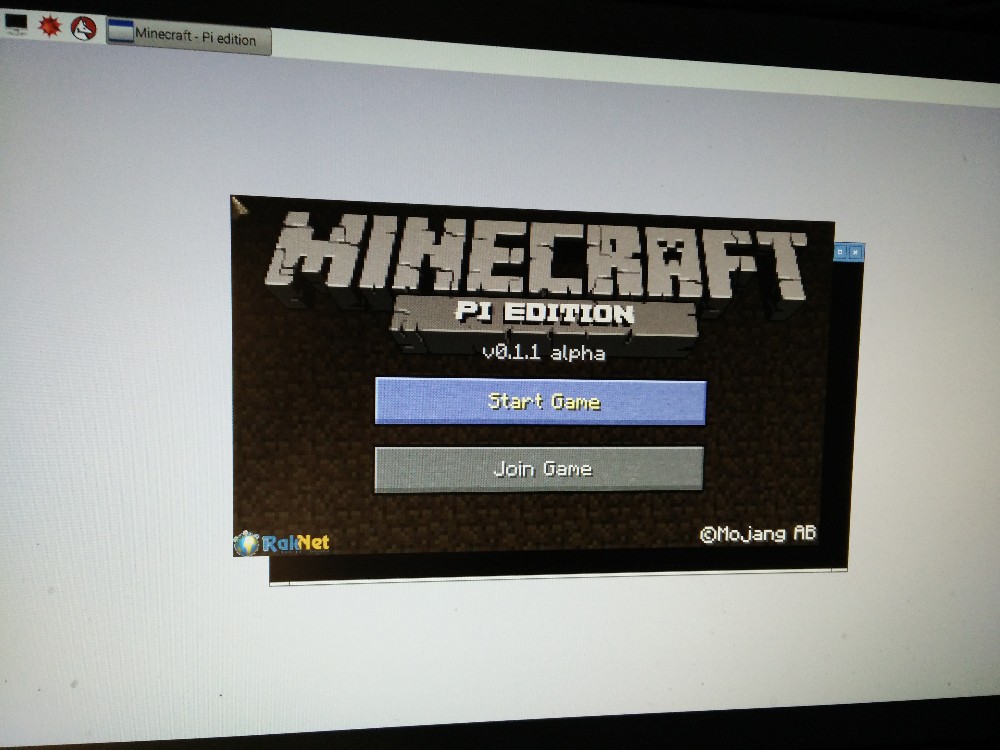

There is a version of Minecraft to test your patience.

55f4ac2dc5c1f_IMG_20150704_150635

Oh! I forgot to show the installation screen. Is that for almost a 40 minutes.

55f4ab7794bf4_IMG_20150703_012344

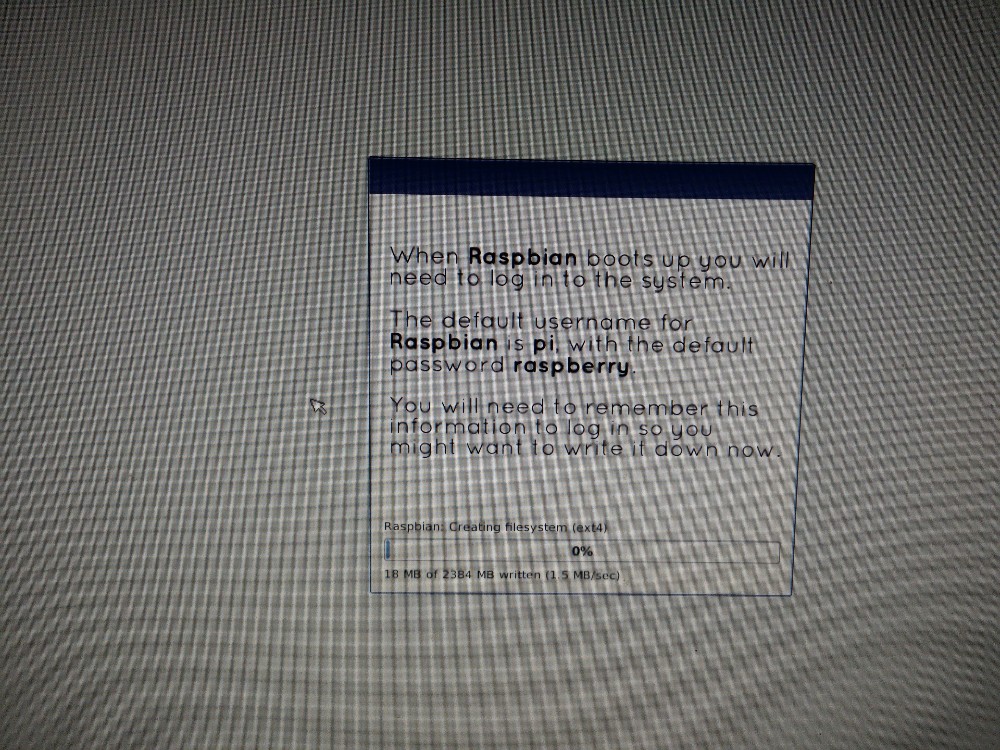

You still warns that, After a long time, you will have to log in with a password on your RaspBerry. I never understood the extreme concern with this free software personal security. Someone will steal my data?

55f4ab7f987df_IMG_20150703_012430

Then I thought, I'm going to install Windows! Must be better, right?

55f4ab8d022f8_IMG_20150703_012502

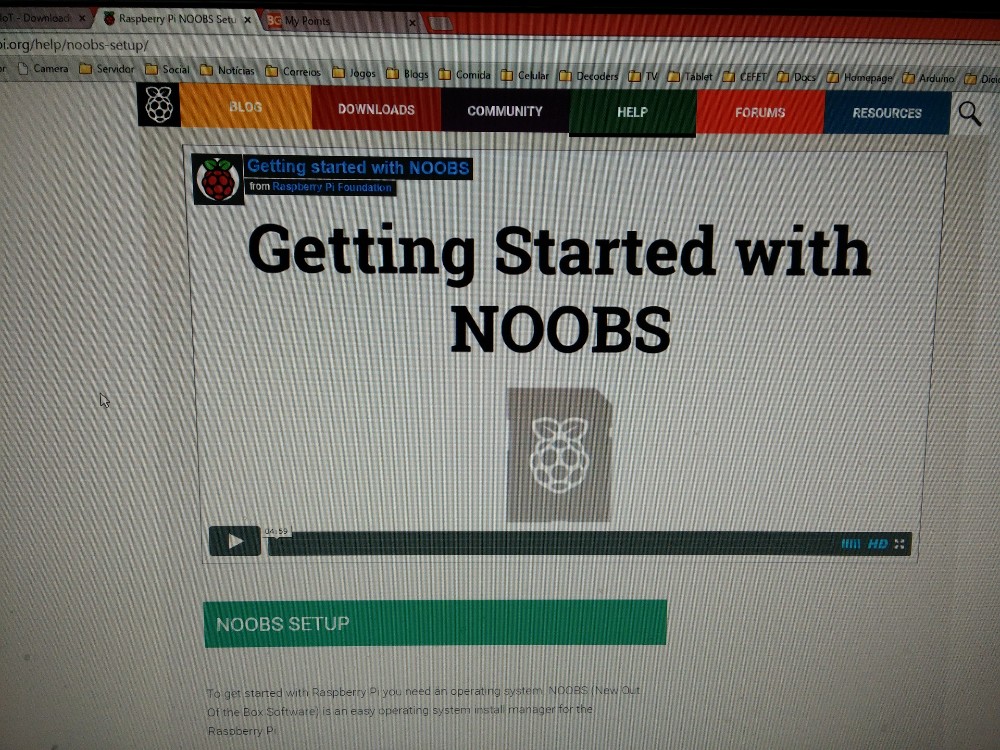

This is the screen for Download the Noobs, the operating system installer for the RaspBerry.

55f4ab9519b3c_IMG_20150703_012557

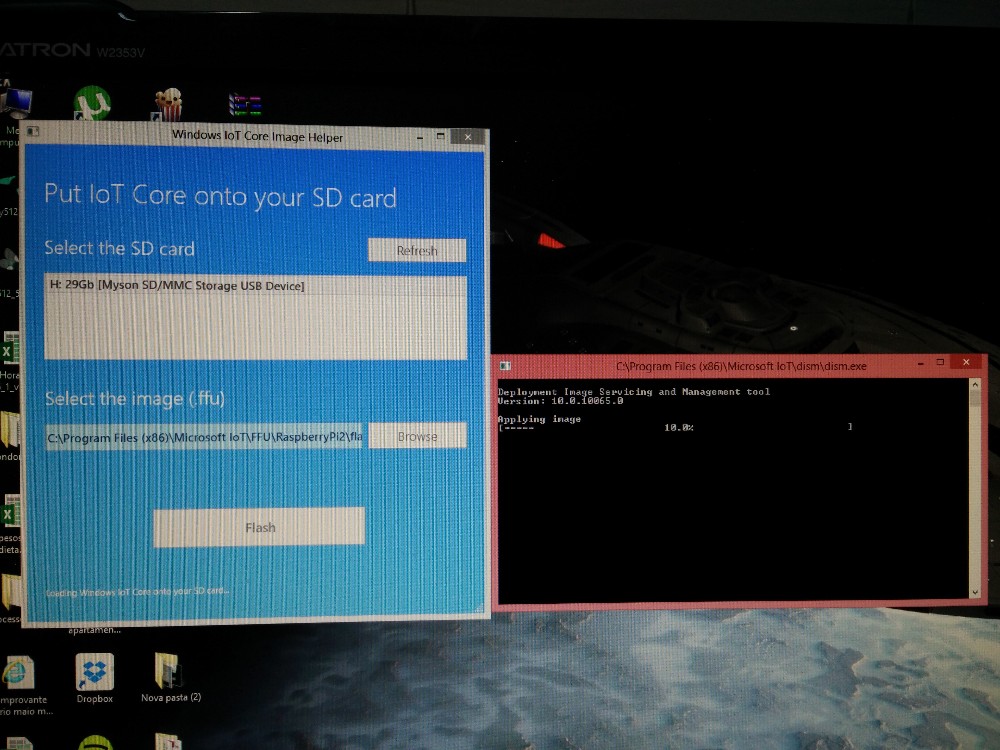

The Windows Installer for Raspberry is the same PC. For this option to the RaspBian also. I recommend installing so, because it takes a lot less. Even so, delay!

55f4ab9db3e23_IMG_20150704_015940

You will now! Windows is coming!

55f4aba0e38a1_IMG_20150704_021619

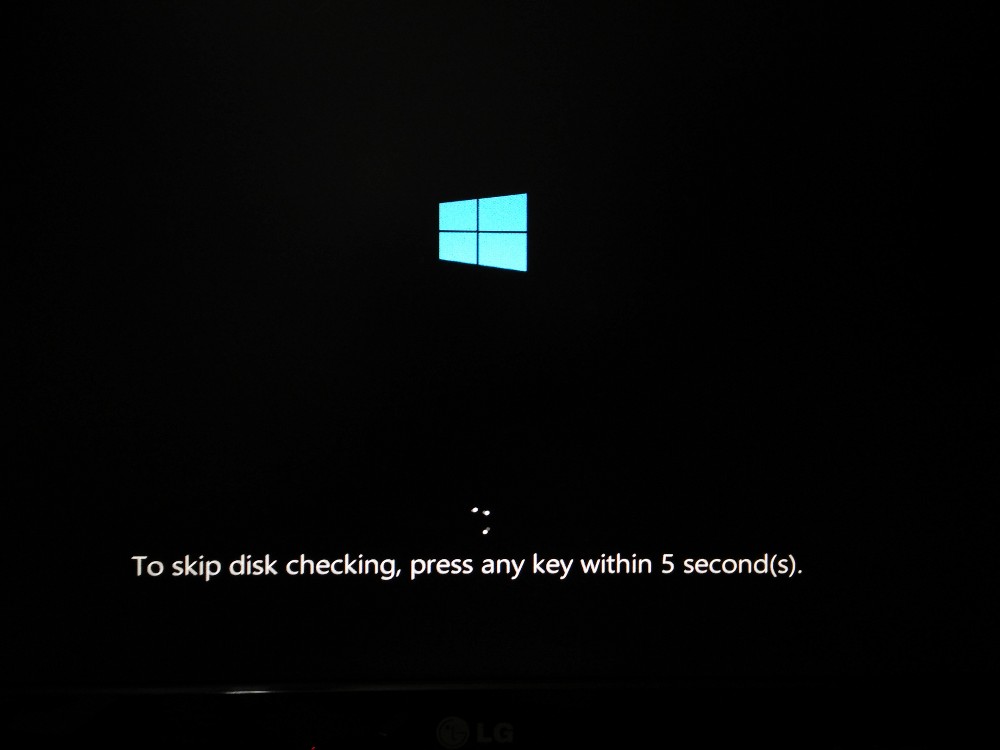

After two hours looking at this screen, I even went to do something else, I gave up installing Windows in my RaspBerry. Because I found out that this was a development version controlled by PC. It's not a complete operating system. What the hell!

55f4abb5dfaaa_IMG_20150704_022133

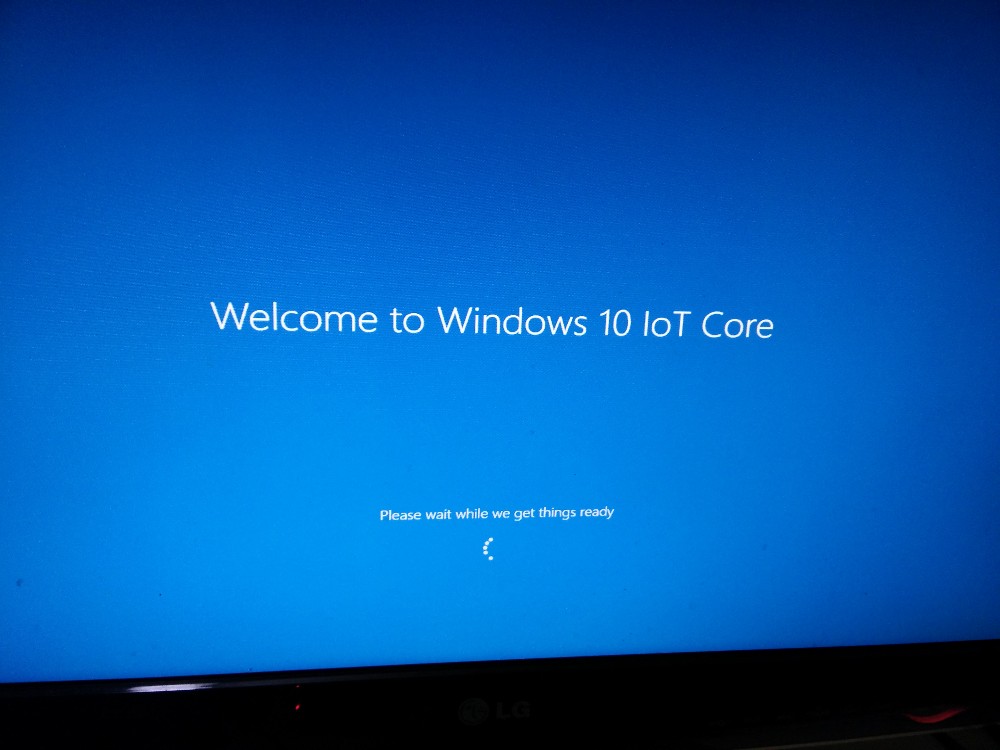

Installed Ubuntu too Mate, What is an operating system much better than Raspbian. Still very, very slow and not useful to be a desktop, even in an emergency. The RaspBerry definitely doesn't work as a computer, or multimedia center.

I haven't had much time to check the development tools for the RaspBerry, but I know that there is the possibility to run Python and other languages. However, in relation to the Arduino, It all seems kind of hard to use, always supported and terminal screen kind of problematic. I'm still looking for what to do with my new RaspBerry Pi 2. Any suggestions? I leave the link to buy the Pi in DealExtreme.
